If you’re designing or sourcing a wiring harness for electronics exposed to the elements, water is one threat that you need to address early.
Moisture from rain can corrode terminals and cause short circuits when you least expect it. Many electronics can withstand normal conditions, but exposure to water can lead to failures that may catch you off guard.
Assuming that a basic coating will keep you covered is a recipe for disaster. In outdoor installations and high-humidity areas, your harness needs intentional engineering to withstand water intrusion and prevent failures.
In this article, our cable assembly service experts will help you understand more about cable harness waterproofing.

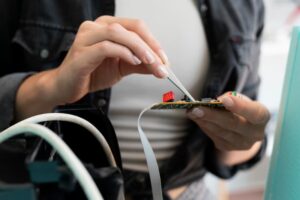

(freepik/Freepik)
Why Waterproofing Your Harness Starts in the Design Phase
Water resistance depends on how you design the harness from the start. Waiting until production ends to think about sealing or drainage means you’ve already missed the opportunity to build in protection. You need to plan routing, component placement, and sealing methods early.
Running cables through low points in your enclosure might seem easier, but water flows downward and sits there. High-point routing and drip loops help keep moisture away from vulnerable connections.
That’s why you need to consider your operating environment during design. In industries such as automotive or marine equipment, the level of exposure necessitates the use of waterproof connectors with integrated seals. Choosing your wire insulation and jacketing materials based on the conditions makes for a more reliable harness over time.
Choosing the Right Materials for Moisture Resistance
When it comes to surviving water exposure, the materials you select will make or break your success.
For high-moisture environments, you want to prioritize wires with:
- Cross-linked polyethylene (XLPE)
- fluoropolymer jackets like PTFE
- Other hydrophobic compounds.
These materials are built to withstand heat and chemical exposure without degrading.
The connectors you choose are just as critical. Sealed connectors rated to IP67 or IP68 standards keep terminations from becoming entry points for water. These work well in automotive engine bays or medical equipment that undergoes cleaning or sterilization.
If your application involves frequent submersion or pressure washing, consider overmolding. It’s a process where you permanently seal wire terminations within a water-resistant compound. This way, you get another layer of protection that holds up in rugged applications.
Don’t Overlook Sealing Techniques at Entry and Exit Points
Even with the right materials, the weakest points in any harness are usually where wires enter or exit a sealed area. Think grommets, glands, and bulkhead fittings. If you don’t torque these areas properly, they can quickly become a path of least resistance for moisture ingress.
In these spots, sealing is as much about the mechanical fit as it is about the sealant. For example, a grommet that’s too loose will allow capillary action to pull water along the wire jacket and into your enclosure. You’ll want to ensure proper compression and tight tolerances that hold under vibration.
If your enclosure needs to be opened frequently, consider using waterproof connectors with integral seals to prevent leaks. This allows you to maintain system integrity without relying on the constant reapplication of tapes or sealants.
Test Early, Test Often
You can’t afford to assume your wiring harness will survive water exposure just because it looks sealed. Effective waterproofing is proven through testing rather than visual inspection. As part of your validation process, simulate environmental exposure based on how and where customers will use your product.
Ingress Protection (IP) testing is a good starting point. IP65 should be sufficient if you need protection from splashes. For full immersion or pressurized spraying, IP67 or IP68 testing makes more sense. These tests simulate real-world conditions and confirm that your components meet the performance level required by your application.
You should also consider stress tests like pressure decay or thermal cycling with condensation. These help uncover weaknesses and stress-test your harness before it goes into production.
Know When to Work With a Cable Assembly Provider
If waterproofing feels overwhelming, consider working with a PCBA assembly company that specializes in cable assembly. These providers understand the difference between standard harnesses that fail in wet conditions and specialized assemblies engineered for water exposure. You can rely on their expertise in material selection, sealing methods, and IP rating requirements.
Cable assembly services also handle advanced manufacturing techniques like ultrasonic welding and overmolding, plus rigorous testing through humidity exposure and salt spray. A purpose-built IP67 or IP68 assembly from an experienced provider operates reliably in wet or submerged conditions.
Consider Your Operating Environment
Not all “wet” environments are created equal. Your wiring harness needs different protection depending on whether it’s exposed to high pressure or temperature extremes. A marine harness, for instance, faces entirely different threats than a harness for a factory floor washdown station.
Saltwater is particularly aggressive. It accelerates corrosion and undermines seals over time. In these cases, corrosion-resistant terminals and conformal coatings may be necessary in addition to standard sealing techniques.
On the other hand, industrial applications may require rugged strain relief and chemical resistance rather than salt protection. Knowing your environment is key to making informed decisions that will pay off in terms of longevity and reliability.
Final Thoughts
Water exposure doesn’t have to mean system failure. With the right design decisions early on and proper testing, you can build a harness that holds up in wet conditions and performs reliably over time.
Don’t wait until the end of production to address water resistance. Build it into your design from day one. When you plan routing, choose appropriate materials, and validate through testing, you end up with a harness that can handle the conditions it’s built for.
