Capacitors are essential components in any PCB. Simple projects use electrolytic capacitors, but high-speed systems need ceramics or tantalum SMD capacitors. These offer benefits like lower voltages and tighter tolerances.
In this guide, we’ll compare ceramic and tantalum SMD capacitors. We’ll look at their benefits, drawbacks, and tradeoffs to help you choose the right one for your project.

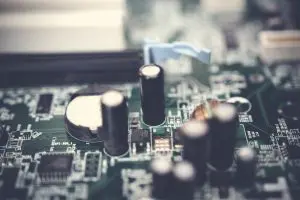

(Pok Rie/pexels)
Ceramic Capacitors
Ceramic capacitors use ceramic as the dielectric. They have lower voltage ratings and smaller capacitance values. MLCCs and ceramic disc capacitors are the most common types.
You’ll find them in personal electronics, PCBs, DC-DC converters, and power breakers. They’re used as general-purpose capacitors because they’re not polarized and come in many sizes and ratings. MLCCs alone are in about a billion devices each year.
Tantalum Capacitors
Tantalum capacitors use tantalum metal for the anode. They have great frequency characteristics and long-term stability. There are wet (foil) and dry (solid) types, with dry being more common.
These capacitors are used in PCs, medical devices, cars, audio amps, and phones. Tantalums need an external failsafe to avoid issues despite having high capacitance density.
Tantalum Capacitor vs Ceramic Capacitor
Tantalum capacitors and ceramic capacitors are the main types used in today’s electronics. Both are useful but have unique benefits and drawbacks.
Aging and Stability
Tantalum capacitors age well and are stable over time. They are preferred for applications needing long-term reliability. Ceramic capacitors, on the other hand, age and are more temperature-sensitive. You can use them where performance outweighs stability concerns.
Polarization
Tantalum capacitors are polarized with a positive and a negative electrode. It’s crucial to connect them correctly in a circuit. Ceramic capacitors are non-polarized, so they can connect to AC sources without worry.
Temperature Response
Tantalum capacitors handle high temperatures better. They are used in environments with higher temperatures. Ceramic capacitors perform better at low temperatures since their capacitance drops with heat.
Voltage Response
Tantalum capacitors have higher voltage ratings, making them ideal for high-voltage applications. Ceramic capacitors work well in low-voltage settings, handling lower voltage levels effectively.
Self-Discharge Rate
Tantalum capacitors have a lower self-discharge rate. They retain charge longer, making them ideal for precision applications. This characteristic ensures high accuracy. Ceramic capacitors discharge faster and might not be as reliable in high-precision settings.
Equivalent Series Resistance (ESR) Stability
Tantalum capacitors have higher ESR stability. They perform consistently over time. This stability is crucial for long-term applications. Ceramic capacitors have lower ESR stability, which can cause performance to vary.
Volumetric Efficiency
Tantalum capacitors are more volumetrically efficient. You get more capacitance in less space. This is ideal for compact designs. Ceramic capacitors also offer high capacitance in small sizes, making them suitable for space-constrained applications.
IR Life Test
Tantalum capacitors are tested by applying voltage and monitoring over time. High IR values indicate better performance and longevity. This test ensures reliability under stress. Ceramic capacitors are tested for capacitance at different temperatures to gauge performance under various conditions.
Power Supply Usage
Tantalum capacitors are typically associated with larger cases, such as the radial SMD capacitor packages. These capacitors are often used because of their high capacitance values and high voltage ratings. This makes them very useful for bulk capacitance in switching power supplies (both on the input and output stages.)
The capacitance in tantalum capacitors can reach hundreds of uF, which you wouldn’t find in SMD ceramics due to their internal structure. This is particularly true for multilayer ceramic capacitors (MLCCs).
Does It Matter What Type of Capacitor You Use?
Yes, the type of capacitor matters. Different capacitors work better in different situations. Tantalum capacitors last longer and offer reliable performance.
On the other hand, ceramic capacitors are cost-effective. They’re ideal if you want to save on electricity costs. You need to consider reliability and performance when choosing a capacitor.
Are Tantalum Capacitors Reliable?
Tantalum capacitors are generally reliable but can be affected by temperature and humidity changes. They have a higher failure rate than other types, so they’re best for less critical applications.
To ensure reliability, use capacitors rated for your specific application and environment. Protect them against electrical surges. Regularly inspect for signs of damage or wear and replace them as needed.
Why Are Tantalum Capacitors So Expensive?
Tantalum capacitors are more expensive because they are precise, reliable, and resistant to temperature and humidity changes. The rare element tantalum used in these capacitors increases their production costs, making them pricier than other types.
Why Do Ceramic Capacitors Fail?
Ceramic capacitors can fail due to age, vibration, and temperature changes. Overvoltage, current leakage, and other electrical issues can also cause damage. To prevent failure, ensure the ceramic capacitor is rated for your application and environment. Inspect it regularly for damage or wear and replace it as needed.
Conclusion
Tantalum capacitors are preferred in power systems and high-frequency applications. They offer superior stability and performance. Ceramic capacitors—especially X7R and X5R types—are comparable in temperature stability and can be used as alternatives in many cases.
Choosing between tantalum and ceramic capacitors depends on your specific needs. Both types enhance the efficiency and reliability of electronics. An EMS solutions provider can help you decide which capacitor is best for your design and application.
