In PCB design, unused spaces often appear due to trace routing, component placement, or multi-layer designs.
Leaving these gaps empty might seem harmless, but it can lead to higher electromagnetic interference (EMI), weaker grounding, and power inefficiencies.
Enter copper pouring—a design strategy that lets you fill these gaps with copper to improve grounding, reduce interference, and stabilize power.

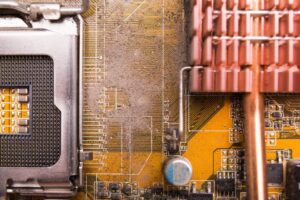

(freepik/Freepik)
What exactly is copper pouring, and how does it work? Let’s take a closer look below.
What is Copper Pouring?
Copper pouring fills unused spaces on a PCB with copper to strengthen grounding and reduce interference.
In other words, it turns empty areas into functional parts of the board, stabilizing return currents and shielding sensitive signals from EMI.
You can use copper pouring in both high-speed designs and simpler layouts to improve power delivery and reliability.
However, poor execution—like incorrect via placement or over-pouring—can create issues such as noise or signal coupling.
That’s why understanding when and how to use copper pouring is essential for achieving the best results in your PCBA EMS manufacturing.
The Steps to Copper Pouring
Copper pouring helps you make the most of empty PCB spaces.
To get it right, follow these practical steps that ensure your design benefits without running into issues.
Step 1: Find the Right Spots for Copper Pouring
Start by looking at your PCB layout and finding the empty areas left after routing traces and placing components.
Focus on areas that matter—places near high-speed signals, power paths, or regions prone to EMI.
These are the areas where copper pouring will have the biggest impact.
Step 2: Tie Copper Pours to a Net
Every copper pour needs to be connected to a network or “net” (the wires that connect things together).
If you leave it floating, it can cause interference or even act like an antenna.
Make sure you tie it to the net using vias or traces to avoid those problems.
Step 3: Strengthen the Pour With Via Stitching
To connect the copper pour to other layers, use via stitching.
Place vias along the edges of the pour or near critical components, like high-speed traces.
Keep the spacing tight enough to avoid resonance, but don’t overdo it—extra vias add to manufacturing costs.
Step 4: Maintain a Safe Distance From Traces
Set a proper clearance between the copper pour and nearby signal traces.
If they’re too close, you might end up with parasitic capacitance that messes with your signals.
Use your design software to set and enforce clearance rules so you don’t have to worry about it later.
Step 5: Add Thermal Relief for Easier Soldering
If the copper pour connects directly to component pads, use thermal relief patterns.
This prevents the pad from drawing away too much heat during soldering, which can make assembly harder.
Thermal relief is especially useful for larger pads tied to ground or power planes.
Step 6: Double-Check for Isolated Copper
Before finalizing your design, check for any isolated pieces of copper.
If they’re not connected to a net, they won’t help your design and might even cause noise.
Go through your layout carefully to make sure every copper pour serves a purpose.
Common Mistakes to Avoid With Copper Pouring
Copper pouring can improve your PCB’s performance, but only if you do it correctly. Rushing the process or missing key details creates unnecessary problems.
One common mistake is leaving copper pours unconnected. Floating copper doesn’t add value—it acts like an antenna and creates noise instead of reducing it. Always tie your pours to a ground or power net using vias or traces.
Another issue is over-pouring. Filling every empty space with copper might seem helpful, but it backfires. Overlapping pours with sensitive traces causes parasitic capacitance, which distorts signals. Maintain proper clearance between pours and signal paths to avoid this.
Misplaced vias also create issues. Vias reinforce copper pours by connecting them to internal layers. Poorly spaced or unnecessary vias cause resonance problems and complicate manufacturing. Stick to a consistent spacing strategy that balances performance and cost.
Lastly, isolated patches of copper can cause EMI problems. These “islands” don’t connect to a net and disrupt performance. Review your design carefully and ensure every pour has a purpose.
When to Avoid Copper Pouring
Copper pouring isn’t always the best choice for SMT manufacturing and other processes. In some cases, it can complicate designs or even create performance issues.
Here’s when it’s a bad idea:
- Dense PCB layouts: Tight spacing can cause coupling and amplify interference.
- Simple circuits: Low-speed designs often don’t need the added complexity of copper pours.
- Overuse of vias: Excessive via stitching increases manufacturing costs without real benefits.
- Isolated pours: Copper areas that don’t connect to a net can create noise rather than reduce it.
Consider whether copper pouring genuinely improves your design. If not, focus on simpler solutions like better trace placement or proper spacing.
Conclusion
Copper pouring can be a great way to improve grounding, reduce EMI, and increase power distribution in your PCB design.
However, you need to apply it with a clear plan to avoid issues like noise, unintended coupling, and higher manufacturing costs.
Use the tips above to apply copper pouring effectively and make sure it adds real value to your design.
