MIL-Spec, or military specification, sets strict standards for cables and wiring used in extreme conditions. These wires are built to handle intense heat, constant vibrations, and exposure to harsh chemicals.

They’re critical for systems where reliability is non-negotiable, such as military radar and communication networks. Unlike commercial cables, MIL-Spec wiring undergoes rigorous tests, including stress and environmental durability checks.

Mil-Spec and Military Wiring Standards Explained

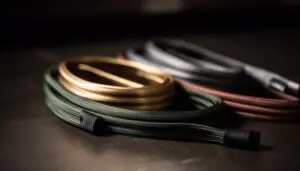

(vecstock/Freepik)

What makes these cables so unique compared to standard options? Let’s take a closer look.

What Are Military Standards?

Military standards, or MIL-Spec, are a set of rules that the U.S. government uses to ensure cables, wiring, and other components perform reliably in extreme conditions. MIL-SPEC helps manufacturers create products that meet strict quality requirements. Agencies like the Department of Defense rely on MIL-Spec for vehicles, aircraft, communication systems, and other critical equipment.

Why Do They Matter?

These standards are important because military equipment can face intense heat, freezing cold, constant vibrations, and exposure to chemicals. MIL-Spec cables handle these challenges and provide reliable performance to keep critical systems running in demanding environments.

What Goes Into a MIL-Spec Cable?

When creating MIL-Spec cable assemblies, manufacturers follow detailed rules about:

  • The application: What the cable will power or connect.
  • The environment: Conditions like temperature, moisture, or abrasion.
  • Materials used: Tough insulations like Teflon or Kevlar for durability.
  • Cable design: Layers, shielding, and other features to protect the wire.

Even the smallest details, like protective covers and connectors, follow these standards to ensure safety and performance.

Overview of Mil-Spec Standards

M22759 (SAE AS22759)

M22759 is a specialized aerospace wire that powers critical aircraft systems. Engineers depend on it for engine controls and electronic systems where failure isn’t an option. The standard ensures reliable performance even when exposed to jet fuel, moisture, and extreme temperatures.

M16878

M16878 withstands extreme temperature and voltage demands in military equipment. M16878/4 handles power supplies and complex harnesses, while M16878/5 excels in extreme heat. The standard’s multiple insulation options, from PVC to PTFE, protect critical connections in demanding environments.

M25038

M25038 stands up to direct flame and constant vibration in aircraft systems. Every circuit using this wire standard maintains integrity under intense stress. It performs where standard wiring would fail within minutes.

M13486

M13486 keeps military ground vehicles running in harsh conditions. From tanks to trucks, this low-tension standard resists moisture and abrasion while staying flexible in freezing temperatures. Field-tested performance makes it essential for military vehicle electronics.

M5086

M5086 serves both military and aerospace applications reliably. Its tin-plated copper and dual-layer insulation resist chemicals, impact, and wear. The standard protects everything from basic connections to complex electronic systems in critical situations.

Governing Bodies

While these military wire standards define the requirements, two key organizations ensure they’re met in practice. The National Electrical Manufacturers Association (NEMA) develops the technical standards and policies that guide wire manufacturing. Meanwhile, the Qualified Products List (QPL) identifies which materials and suppliers meet military requirements.

Together, these organizations ensure every wire stamped with a MIL-spec rating lives up to its promises. From the factory floor to final installation, their oversight maintains the quality of military operations demand.

Installation and Handling Requirements

Unlike commercial wiring, MIL-spec cables require specific handling and installation procedures. Cable assembly services must follow strict protocols during installation to maintain performance integrity. Each wire type has unique requirements for bend radius, mounting methods, and protection from potential damage.

Installation teams pay careful attention to minimum bend radius specifications and proper routing away from heat sources. They must ensure secure clamping with appropriate strain relief at connection points. Protection at transition areas and proper shielding from electromagnetic interference are equally crucial. These installation requirements ensure MIL-spec wiring performs reliably throughout its service life.

Testing and Certification Process

Every MIL-spec wire undergoes extensive testing before certification. Electronic manufacturing services for military applications must verify performance through standardized tests. These include exposure to extreme temperatures, chemical resistance checks, and mechanical stress trials.

Only after passing these rigorous evaluations can a wire receive MIL-spec certification. This testing process, combined with quality control during production, ensures each wire meets military performance requirements.

Where MIL-Spec Wire Proves Essential

Military operations rely on specialized wiring in diverse scenarios:

  • High-Frequency systems: Radar installations and communication arrays depend on MIL-spec wiring for reliable signal transmission.
  • Critical operations: Military computer systems and control networks need wiring that won’t fail under pressure.
  • Mobile military equipment: Tanks, aircraft, and naval vessels rely on these specialized wires to maintain performance in harsh conditions.

Selecting the Right Military Wire Standard

Choosing the right MIL-spec wire starts with understanding your application’s demands. High-temperature environments might require M16878/5, while aerospace applications call for M22759. Working with experienced cable assembly manufacturers ensures you get the right specifications for your needs.

Consider factors like:

  • Operating environment (temperature, chemicals, vibration)
  • Installation requirements (flexibility, space constraints)
  • Performance needs (signal integrity, power handling)
  • Certification requirements

Conclusion

MIL-spec wire standards represent decades of engineering experience in military applications. From radar systems to ground vehicles, these specifications ensure reliable performance in conditions that would destroy standard wiring. While MIL-spec wire/cables may cost more than commercial alternatives, their proven reliability makes them essential for critical military operations.

Understanding these standards helps engineers and contractors select the right wire for each application. As military technology advances, these standards continue evolving to meet new challenges while maintaining the reliability that military operations require.
