When you think about PCBs, insulation might not come to mind first. But the high level of heat printed circuit boards generate warrants proper insulation. Imagine your device overheating and failing just because you didn’t use the right materials to prevent electrical flow between surfaces. With proper PCB insulation, you can save on costs and ensure better device performance.

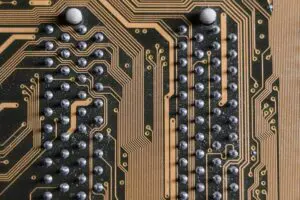

(Tima Miroshnichenko/pexels)
What is PCB Insulation?
PCB insulation uses dielectric materials to separate and protect the conductive layers of a circuit board. With electronic devices generating high temperatures, you need the right insulation to keep things in check. PCB insulation companies use dielectric materials to ensure the board’s elements stay separate and safe.
Some of the reasons for insulating printed circuit boards include:
- Maintaining adhesion at operating temperatures
- Minimizing signal interference between layers
- Ensuring voltage integrity and signal quality
- Supporting efficient thermal management during production
PCB Insulation Materials
Manufacturers use several insulating materials based on the PCB’s application. Here’s a look at different types:
Metal Coating
Metal coatings provide excellent conductivity and heat resistance. They safeguard against powerful electrical ion flow. Devices that consume high currents rely on metal insulation for maximum efficiency.
FR-4
FR-4 is a flame-resistant material crafted from fiberglass. It’s perfect for double-sided PCBs and is budget-friendly. This material withstands heat and physical stress, making it a top choice for many manufacturers.
Flex Insulation
Some PCBs need to be flexible. Flex circuits require a unique insulation that doesn’t restrict movement. A solid yet thin coating works best. Many use PCB insulation spray for flexible circuits.
FR-2
FR-2 is a combination of plastic and paper. It’s lighter than FR-4 and best for single-layered PCBs. While it’s less fire-resistant, it’s durable and water-repellent. Manufacturers typically use FR-2 in inexpensive electronics because it costs less than other types of insulation materials.
Radio Frequency Coating
PCBs in devices that use radio frequencies need special insulation. Radio frequency coatings are ideal for aerospace and in-flight electronics. They manage high frequencies effectively without problems.
Understanding these materials ensures you choose the right insulation for your PCB.
PCB Insulation Coating
Choosing the right PCB insulation coating depends on many factors, such as PCB layout and where it will be used. Here’s a simple guide to help you pick and apply PCB coatings correctly.
Understanding Insulation Coating Materials
There are several types of coating materials you can use for insulating a PCB:
- Acrylic acid resin coating: Acrylic resin is simple to adjust and cost-effective. It resists moisture well and dries fast. This coating is easy to apply and relies on solvent evaporation.
- Epoxy resin coating: Epoxy resin is a highly durable coating that withstands moisture, corrosion, and heat. You can use it for various applications, though it may shrink in cold conditions.
- Parylene coating: Parylene is a thin, strong coating that offers even, protective coverage. Most use it for PCBs with high-frequency signals. It’s highly effective but comes at a higher cost.
- Polyurethane coating: Polyurethane is strong and resists moisture, acid, and solvents. It’s hard to remove or fix and may change color with heat, possibly damaging screws.
- Organic silicon coating: Organic silicon is flexible and handles heat and moisture well. It suits high-circuit PCBs but is tough to remove. As such, you should ensure it’s the right fit for your specific needs before application.
Choosing the Right Coating
PCB coatings have different properties. You need to consider performance, cost, and the environment. Look for a coating that is affordable, flexible, and strong. Ensure it can handle high temperatures and impacts. Ideally, you should choose one that’s easy to apply and repair without creating any unwanted residues.
Verifying Coating Quality
After choosing a coating, confirm it meets certifications like UL and RoHS. Make sure it aligns with the manufacturer’s guidelines and processes. Verification involves applying the coating and inspecting it for evenness, clarity, and flaws like cracks or bubbles. Manufacturers also test how easy it is to rework and how well it protects under different conditions.
Practical Application
Practical application of PCB coatings involves ensuring proper coverage and protection. Apply the coating evenly, checking for flaws like bubbles or cracks. Use coatings that fit your environment, whether it’s moisture-rich or heat-intensive. Make sure it’s easy to apply and repair. Regularly inspect the coated PCB for signs of wear and reapply as needed.
Other Factors to Consider
With new technology, PCBs now have multiple layers. These designs are stronger, faster, and packed with more components, but they also come with complex routing challenges.
Choosing the right insulation helps manage these layers effectively. Here are some key considerations:
PCB Size
The size of the PCB can limit insulation thickness. Choosing the right insulation ensures the board performs well within these size limits.
Board Type
Most PCBs use FR-4 for insulation. High-speed boards face electromagnetic interference. The insulation must be strong enough to prevent this.
Insulation Thickness
The thickness of the insulation matters. Thin insulation might disconnect from the signal layer, reducing interference. Thicker insulation allows better routing on multi-layer boards.
Temperature
High temperatures during production can affect the board. Flexible designs need more movement than rigid ones. Insulation keeps the board stable and functional.
Final Verdict
PCB insulation is the foundation of reliable electronic devices. Without proper insulation, your devices can face issues like heat damage, moisture intrusion, and signal interference. This makes it essential to choose the right insulation techniques and materials.
Familiarize yourself with different insulation materials and methods, no matter if you’re working with a PCBA manufacturer or handling the process yourself. With the right materials and coatings, you should be able to improve the performance and longevity of your electronic devices.
