Managing PCB component libraries demands organization and attention to detail. A misplaced footprint or outdated spec creates costly manufacturing delays and board respins.
Learn step-by-step methods to build, organize, and validate your PCB libraries. We’ll show you proven practices that catch errors early and maintain library accuracy throughout your design process.

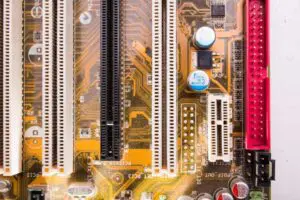

(freepik/Freepik)
Understanding PCB Library Components
Successful electronic manufacturing services start with accurate component libraries. Your library needs three critical elements: schematic symbols for logical design, footprints for physical layout, and specification data for manufacturing.
Each component mistake multiplies through your entire PCB assembly process. A single incorrect footprint or outdated specification creates production delays and expensive rework cycles.
Library Organization Strategies
You’ve got your components ready. Now, you need a system to manage thousands of parts. Finding exactly what you need during design becomes critical to meeting production deadlines.
Group Components By Type and Function
Separate passives, ICs, connectors, and power components into distinct sections. After creating these categories, divide through-hole from surface-mount parts to streamline your selection process.
Build Strong Naming Conventions
Include manufacturer numbers, package types, and ratings in your filenames. Adding revision dates can help track component updates easily.
Establish Clear Update Procedures
Set controlled access to prevent accidental changes. Maintain detailed modification logs so you can quickly address contract manufacturer questions about footprint versions with proper documentation.
Library Validation Methods
Finding component errors during production wastes time and money. Your PCB library validation process needs to catch issues before boards hit manufacturing.
Compare footprint dimensions against manufacturer datasheets. Tolerance errors, pad spacing mistakes, and wrong pin assignments often hide in legacy parts. One incorrect measurement can render entire designs unusable.
It’s also crucial to verify electrical specifications and pin configurations in test designs. A component might have perfect physical dimensions but wrong pin assignments or electrical characteristics.
Component Simulation Testing
Accurate simulation models in your library prevent expensive prototype failures. Every SPICE model and 3D component file affects your design’s success. When these models match real component behavior, you catch problems at your desk instead of in production.
Good simulation data lets you verify designs before ordering boards. You’ll spot signal integrity issues, thermal problems, and mechanical conflicts early. This cuts prototype cycles and prevents assembly line surprises that cost weeks of rework.
Library Automation Tools
Manual library management becomes overwhelming as component counts grow. Modern PCB design software offers automation tools that streamline library maintenance and reduce human error.
Component verification tools scan your library for common problems. They check pin assignments against manufacturer databases, verify footprint dimensions, and flag potential manufacturing issues. These automated checks catch mistakes that visual inspection might miss.
Your design software should integrate with component databases. Live supplier data helps track component lifecycle status and suggests alternatives for obsolete parts. Database integration also ensures your footprints match current manufacturing specifications.
Working with Contract Manufacturers
Your PCB library directly impacts manufacturing success. Contract manufacturers spot outdated library data immediately through their component verification process.
Electronic manufacturing services can help strengthen your library management. They review your BOM against current component data and identify potential production issues before they become costly mistakes.
Key PCBA contract manufacturer services include:
- Component verification against current specifications
- Library updates to match available parts
- Lifecycle monitoring for obsolescence
- Production-ready footprint validation
Handling Library Updates
Keeping your library current prevents production delays. Start a regular update cycle to catch obsolete components and specification changes early.
Your update process should cover:
- Review manufacturer datasheets for specification changes
- Check component availability and lifecycle status
- Update footprints to match the latest manufacturing requirements
- Document all modifications for team reference
Quality Control Essentials
PCB library quality affects every design you create. Daily quality checks prevent the small mistakes that lead to production failures and redesigns. Start each design session by verifying component updates and checking library alerts.
Set standards for component verification. Every new part needs datasheet cross-checks, footprint validation, and specification reviews before entering your library. Quick fixes and rushed additions always cost more time later. Regular audits catch problems before they spread through multiple designs.
Avoiding Common Library Failures
Every PCB library faces predictable problems that threaten production quality. Duplicate components creep in during tight deadlines, creating confusion during manufacturing. Engineers make undocumented changes that cause inconsistent builds months later. Multiple library copies emerge across design teams, each with slight variations that jeopardize quality.
The way to prevent these issues starts with strict library control. Designate one master library as your single source of truth. Create clear procedures for adding or modifying components—even during urgent projects.
When engineers need quick changes, your process should handle requests quickly while maintaining quality standards.
Future-Proofing Your Library
Your component library needs to handle tomorrow’s design challenges. New package types emerge constantly, manufacturing requirements evolve, and component specifications change. A rigid library structure quickly becomes outdated.
Build flexibility into your library system from the start. Create category structures that accommodate new component types. Set up data fields for emerging manufacturing requirements. Most importantly, establish processes that adapt to changing design tools and production methods.
Regular evaluation keeps your library relevant. Review your organization’s methods, update classification systems, and refine documentation standards. A library that can’t grow with your design needs becomes a bottleneck to production success.
Conclusion
Quality PCB assembly starts long before manufacturing. Your library management strategy determines whether designs flow smoothly to production or create costly delays.
Quality electronic manufacturing services providers see the difference immediately between libraries that enable first-pass success and those that force repeated board respins. Invest time in your library development now. The returns show in every successful board you produce.
