How do all those tiny components stay perfectly aligned on a circuit board? And what ensures each connection works as it should? Enter SMT (Surface Mount Technology) assembly.
As electronics continue to advance, SMT assembly has to handle more parts in tighter spaces. Keeping everything precise isn’t easy, especially with hidden pins and intricate designs.
These challenges make thorough inspection and testing more important than ever. Strong procedures and advanced technology are key to catching issues early on.
In this article, we’ll explore the essential SMT inspection techniques and test technologies that ensure everything functions as intended.

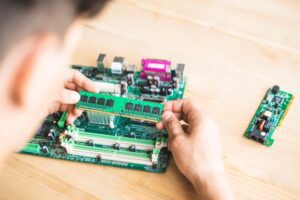

(freepik/Freepik)
Visual Inspection
Visual inspection relies on the naked eye to spot whether a product meets the standards. It’s a simple part of SMT inspection that PCB assemblers use at various points in the production process.
PCB assemblers like visual inspection because it’s simple and cost-effective. But it depends heavily on the experience and focus of the person doing it, which can be a limitation.
The method also struggles with tiny components like 0402 or 0603 packages. The naked eye just can’t catch every little detail, so assemblers often pair visual inspection with other techniques.
Automated Optical Inspection (AOI)
Automated Optical Inspection (AOI) is the system that uses cameras to scan PCBs, comparing each one to a set of standards stored in its database. If something doesn’t match up, it flags the issue, either showing it on a screen or marking it for a quick fix.
In SMT circuit board manufacturing, defects are rare but easy to miss when they do show up. AOI steps in to handle the visual inspection, using optical character recognition (OCR) to check that every component is right where it needs to be.
AOI also checks for correct polarity, making sure components are oriented properly. If any parts are shifted or out of place, AOI spots that, too, even catching bent or lifted leads with its 3D imaging.
This system also analyzes solder quality, looking for opens, shorts, and the proper amount of solder. It’s most effective when you place it at key points in the production line, such as post solder paste application, before reflow soldering, and after reflow soldering to catch any issues from previous stages.
X-Ray Inspection
X-ray inspection gives you that extra layer of precision in SMT assembly. It lets you peer inside the PCB with X-rays, revealing what’s hidden underneath.
When you’re dealing with BGA components, where the solder joints are out of sight, X-ray inspection comes through. The X-rays pass through the board and catch issues like solder voids that might slip by otherwise.
You’ll see the process in action as X-rays shoot through the PCB, showing any flaws in the internal structure without damaging the board.
Adjusting camera angles and focus will help you get a detailed check from different perspectives. It’s a handy technique for identifying problems early and making sure each board meets industry standards.
In-Circuit Testing (ICT)
In-circuit testing (ICT) ensures your PCB is ready. It uses tools to check that every component is in the right place and functioning properly.
ICT identifies issues like solder shorts, missing components, and tombstoning (where one of the parts lifts off of the PCB during reflow soldering, affecting other components). It sends signals through the board, measures the responses, and verifies that everything is connected as it should be.
Inspectors connect the board to the tester through a fixture. From there:
- Signals move between the tester and the board
- The system then:
- Checks component values
- Detects open connections or short circuits
- Identifies misplaced parts
Although ICT takes longer than other SMT testing methods, it plays a key role in comprehensive electrical testing. It confirms the board meets all requirements.
Other SMT testing techniques include:
- Flying Probe Testing: This technique is perfect for prototypes and small batches. It uses movable probes to “fly” between various points on the PCB and check their viability.
- Thermal Imaging: This method lets you check for hotspots by capturing the PCB’s heat signature during operation. Use it to identify issues like excessive current and bad solder connections.
- Boundary Scan Testing: This method uses built-in features in components to test connections. It’s a great choice for complex boards or ones with limited access.
- Functional Testing: This technique simulates real-world conditions to see if the PCB works as intended. It helps you catch problems that might only show up when the board is fully operational.
Inspection Stages
Let’s talk about how inspections fit into SMT circuit board assembly. They’re the checkpoints that keep everything running smoothly and catch problems before they get out of hand.
Incoming Inspection
Incoming inspection helps you spot any issues right from the beginning so they don’t cause trouble later. You start by inspecting the materials—PCBs, solder paste, components—before they even touch the assembly line.
Process Inspection During Assembly
As you go through assembly, you’ll check specific steps like solder paste printing, chip mounting, and reflow soldering. This requires you to closely look at each stage to make sure everything’s where it should be. The goal is to keep the process on track and address problems before they snowball.
Final Checks and Rework
The final step is to check that everything is good to go. If something’s off, you fix it. This is the last chance to catch issues before the boards move to another stage.
These inspections are your quality control throughout the SMT process. They make sure each PCB is up to standard and ready for the next step.
Conclusion
These are some of the testing and inspection techniques used in SMT manufacturing. From visual checks to advanced X-ray scans, each method plays a vital role in ensuring your PCB assembly meets the highest standards. Remember, while these methods cover many bases, you can always explore additional techniques to fit specific needs and improve your process.
Video
Infographic
As electronics advance, SMT assembly must handle more components in tighter spaces. While ICT is slower than other methods, confirming that the board meets all specifications is essential. Explore this infographic for additional SMT testing techniques.
