Imagine pouring hours into designing a perfect PCB, only to have the end product miss the mark. To bridge the gap between design and execution, there’s a step you can’t afford to overlook: obtaining a PCB assembly service quote. This foundational document:

  • Details the project’s cost
  • Specifies the expected timeframe
  • Lists the necessary resources

With this comprehensive guide in hand, a manufacturer can fine-tune their approach to meet your exact needs. It becomes the compass pointing them towards your envisioned outcome. This article explores PCB assembly quotes in depth, uncovering insights to ensure you make the most of them for optimal results.

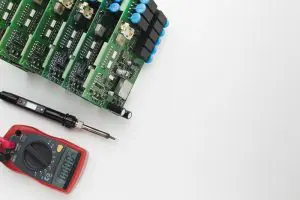

The Importance Of PCB Assembly Service Quotes For Your PCB Projects

(freepik/Freepik)

What Is a PCB Assembly Service Quote?

A PCB assembly service quote provides a clear breakdown of the manufacturer’s projected costs, timeline, and capabilities in turning a PCB design into a tangible product.

This quote can be for various services, including design, assembly, or the entire manufacturing process. Accuracy in the quote ensures a streamlined production process. For this reason, it’s vital to supply complete and precise details when requesting a quote. If anything is unclear or missing, a reliable PCBA contract manufacturer will seek clarification to avoid mistakes.

A well-constructed quote is crucial for a successful PCB assembly. Every specification, from the board type to the outer layer copper finish, affects the final product.

Key Components of a PCB Assembly Service Quote

To generate an accurate quote, manufacturers often have online forms on their websites that require specific input from the designer. Here are the primary details that these forms typically request:

  • Total number of holes
  • Board size specifications
  • Trace width at its narrowest
  • Desired material for the board
  • Layer count specification
  • Type of board required
  • Annular ring criteria
  • Preferred finish for the exterior copper layer
  • Spacing requirement between traces

Necessary Documentation for a PCB Assembly Quote

To obtain an accurate PCB design quote, manufacturers usually request four critical documents. The nature of the information in these documents often varies based on the technological capacities of individual companies.

Bare Board Prints

At the heart of the PCB quoting process is the bare board print or fabrication drawing. This document delivers vital details like the count of holes, board’s thickness, its external dimensions, and more. It should clearly indicate both the component and revision numbers. Furthermore, the submission should include Gerber files, which are the primary design files necessary for fabrication. When submitting these, ensure they’re provided in the appropriate format.

Design Print

The design print serves as a detailed visual representation for the manufacturer, showing the precise placement of components on the PCB. It also indicates specific circuit board markings. Both the revision and design part numbers should be evident on the design print, which is most commonly available in PDF format.

Bill of Materials (BOM)

The Bill of Materials is a critical element for your PCB design quote. It outlines and manages all the components involved. Each entry should detail the item’s description, its internal part number, and a reference designator. Notably, the BOM should also encompass a list of approved vendors. Excel remains the preferred format for this document.

List of Authorized Vendors

This document cross-references the manufacturer part numbers with the internal ones, providing clarity on parts selection. It’s worth noting that multiple approved manufacturers might be linked to a single internal part number.

Key Details to Include in a PCB Assembly Quote Request

When you ask for a PCB quote, it’s easy to miss out on some details. But even the smaller details can make a big difference in the final assembly. So, it’s crucial to double-check your list.

  • Impedance details: Your PCB needs specific impedance controls. Leaving out these controls can slow down the quoting process.
  • Solder mask info: Contract manufacturers need to know about the solder mask you want. This includes its type, finish, color, and which sides it covers.
  • Surface finish: The surface finish you pick affects how your PCB works. Some common choices are electroless nickel immersion gold plating and hot air solder leveling. Make sure to mention your choice.
  • Stack-up details: These details help create the PCB stack-up. They cover things like layer thickness, how many layers there are, and the stack-up’s overall thickness.
  • Cut-out: Not all holes in a PCB come from mechanical drilling. For those that don’t, you need to mention where they are and their size.
  • Silkscreen: You might forget about the silkscreen. But, manufacturers need to know where you want it and its color.

Always give as much information as you can when asking for a quote. It helps get your PCB just right.

Why PCB Assembly Quotes Vary Between Manufacturers

When seeking PCB assembly quotes, you might notice variances between manufacturers. Here’s a breakdown of why these differences exist:

1. Equipment

Some use the latest machines, which can handle tricky designs. Others stick to older gear, which might be cheaper but less accurate.

2. Experience

Manufacturers with years of work behind them might charge more. But they bring wisdom to your project that newer companies might not have.

3. Materials

Better materials cost more. It’s up to you to decide how much quality matters for your project.

4. Speed

Need your PCBs fast? Some manufacturers speed things up, but it might cost you more.

5. Order size

Ordering more often means a cheaper rate per unit. Small orders? Expect to pay a bit more for each one.

6. Testing

A manufacturer that checks each PCB after assembly will charge more. But fewer mistakes mean fewer headaches later.

7. Extra costs

Always read the fine print. Some quotes might not include shipping, additional revisions, or last-minute changes.

So, when comparing quotes, think about more than just the dollar amount. Check what you’re getting for your money, and make sure it fits what you need. Your project deserves a manufacturer who matches your standards and needs.

The right PCB design quote can make or break the transition from design to a working board. While many companies offer free online quotes, choosing a trusted PCB design company matters. A quality-focused firm not only provides comprehensive online quotes but also ensures each PCB adheres to the highest standards.
